TAP1500

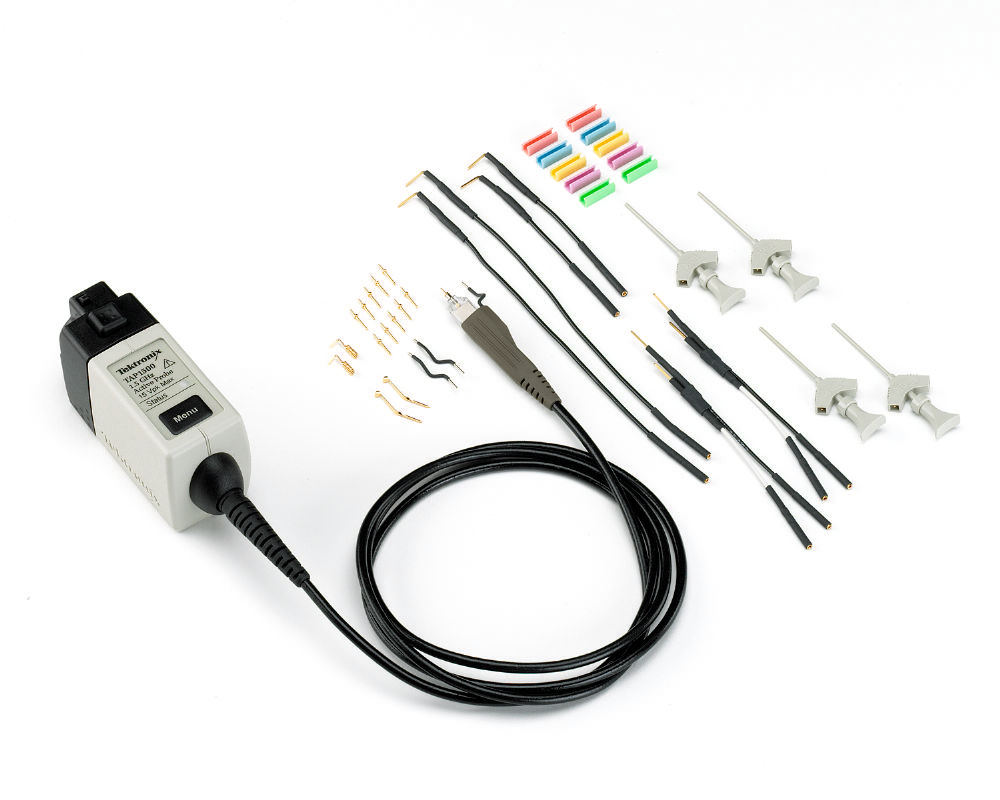

Tektronix TAP1500

Brand Logo
Sonde active, 1.5GHz, 1MOhm, +/-8V, 10x
https://www.testoon.com/web/image/product.template/31453/image_1920?unique=20cc611
Sonde active. 1.5GHz. 1MOhm. +/-8V
Temps de montée: <267 ps
Capacité d'entrée : <1 pF
Résistance d'entrée : 1MOhm
Gamme d'entrée dynamique : +/-8V
Gamme offset d'entrée : +/-10VDC

2 454,00 € 2454.0 EUR 2 454,00 € Hors taxes 4 090,00 €

2 454,00 € Hors taxes 4 090,00 €

Guide

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales

Partager

TAP1500
Applications
Power supplies
Semiconductor devices
Power inverters/converters
Electronic ballasts
Industrial/consumer electronics
Motor drives
Transportation systems
1.5 GHz active probes for TekVPI™ probe interface
Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance
Versatile DUT connectivity for attaching to small SMDs
Preserves instrument bandwidth at the probe tip for ≤1 GHz oscilloscopes
Key features
Outstanding electrical performance
 - ≥1.5 GHz probe bandwidth
 - <267 ps="" rise="" time="" div="">
 - ≤1 pF input capacitance
 - 1 MΩ input resistance
 - 8 V to +8 V input dynamic range
 - 10 V to +10 VDC input offset range
Versatile mechanical performance
 - Small compact probe head for probing small geometry circuit elements
 - DUT attachment accessories enable connection to SMDs as small as 0.5 mm pitch
 - Robust design for reliability
Easy to use
 - Connects directly to oscilloscopes with the TekVPI™ probe interface
 - Provides automatic units scaling and readout on the oscilloscope display
 - Easy access to oscilloscope probe menu display for probe status/diagnostic information. and to control probe DC offset
 - Remote GPIB/USB probe control through the oscilloscope
Specifications
Attenuation (probe only): 10X ±2%
Bandwidth (probe only): ≥1.5 GHz
Rise time (probe only): <267 ps="" div="">
Input capacitance: <1 pf="" div="">
Input resistance: 1 MΩ
Linearity: ±8 V (16 Vp-p)
Input offset range: ±10 V
Maximum non-destructive input voltage: ±15 V (DC + peak AC)
Propagation delay: 5.3 ns
Cable length: 1.3 m
