TT-SX 9001

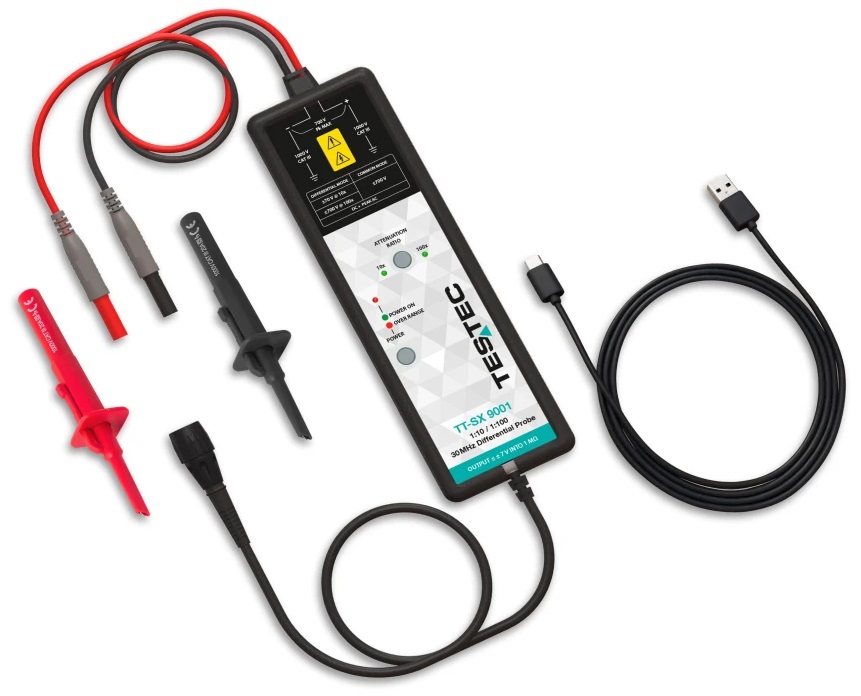

Testec TT-SX 9001


Sonde de tension différentielle 30MHz, 5MOhm, 700V
https://www.testoon.com/web/image/product.template/42823/image_1920?unique=0475a04
Sonde de tension différentielle.
Tension différentielle d'entrée max.: 700V.
Bande passante: 30 MHz.
Précision: 2%.
Atténuation: 10:1, 100:1.
Impedance/capacité d'entrée: 5 MOhm / 2 pF.
Alimentation : 4 piles AA ou via cordon USB (oscilloscope ou secteur).

498,00 € 498.0 EUR 498,00 € Hors taxes

498,00 € Hors taxes

Guide

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales

Partager

TESTEC DIFFERENTIAL PROBES

TT-SX 9000 series



 TT-SX 9001
(15601)		TT-SX 9002
(15602)
Bandwidth 30MHz
Attenuation Ratio x10 / x100 x20 / x200
DC-Accuracy ±2%
Risetime 14ns
Max. Input Voltage (DC + Peak AC)
Differential Mode		 ±70V @ x10
±700V @ x100		 ±140V @ x20
±1400V @ x200
Max. Input Voltage (DC + Peak AC)
Common Mode		 ±700V @ x10
±700V @ x100		 ±1400V @ x20
±1400V @ x200
Absolute Max. Rated Input Voltage
(each side to ground)		 1000V CAT III
Input Impedance/capacitance
(each side to ground)		 5MOhm, 2pF
Output Voltage
(driving 1MOhm Load)		 +-7V
Offset (Typical) +-20mV
Noise (Typical) 0.7mVrms
CMRR (Typical) -72dB (50Hz | -66dB (20kHz) | -56dB (200kHz)
Power Requirements 4x AA batteries or USB-C Cable
Power Source Input : 100-240VAC - 0.35A
Output : 5VDC - 1A
Safety Standard IEC1010-031: 2015 - CAT III
Cables/leads length Input leads : ~55cm
BNC cable : ~95cm
USB Cable : ~100cm
Dimensions 220x68x28 mm (with rubber jacket)
Weight ~500g (with batteries and rubber jacket)
Supplied Accessories 1x TT-SX GR 1 Probe Hook, Pair (red & black), 1x TT-SX USB Power Cord, 100cm

Only connect to a grounded measuring device!
Batteries are not supplied!
