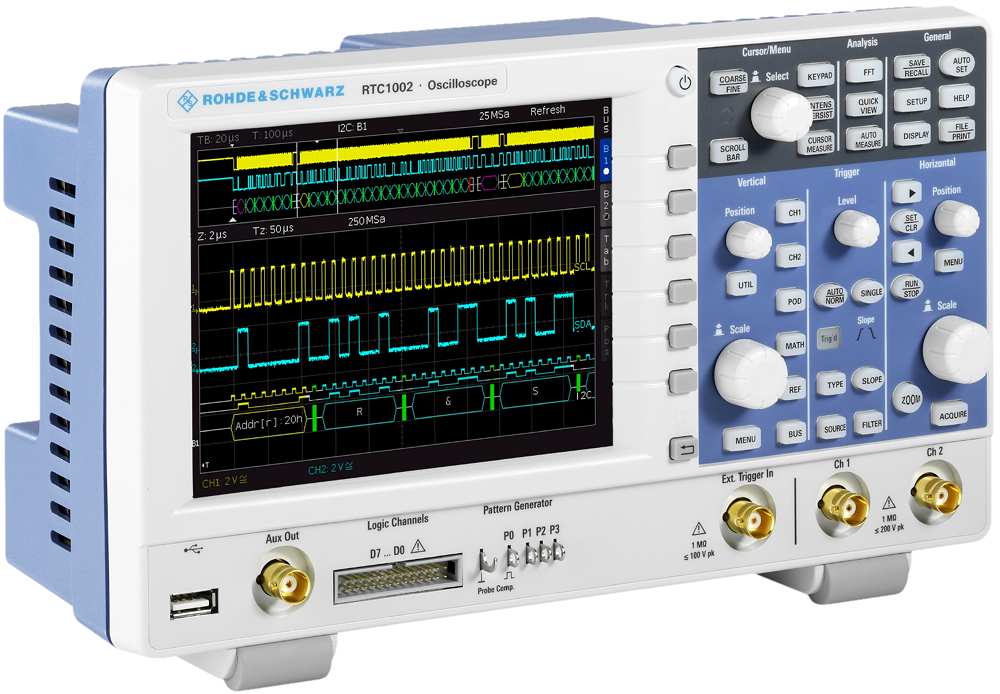

Rohde & Schwarz RTC-1002

Oscilloscope 8-en-1 8bits, 2 voies, upgradable 50MHz à 300MHz, écran 6.5" - analyse logique en option

-------------------------
Modèle 2 voies analogiques.
Bande passante selon option choisie (prix de base indiqué pour un modèle 50MHz).
-------------------------

Oscilloscope 8-en-1 évolutif.
Convertisseur 8 bits.
Ecran 6.5" tactile capacitif multi-points.
Démarre en seulement 10 secondes.
Bande passante standard 50MHz upgradale jusqu'à 300MHz (voir les options).
Nombre de voies: 2.
Fréquence d'échantillonnage: 1GEch/s par voie.
Profondeur mémoire: 1Mpts par voie.
Vitesse d'acquisition: 10000 wfm/s.
En option: 8 voies logiques, décodages de bus série, générateur arbitraire, kit de montage en rack, sacoche de transport.

1 030,00 € 1030.0 EUR 1 030,00 € Hors taxes

1 030,00 € Hors taxes

Cette combinaison n'existe pas.

Ajouter au panier Acheter maintenant

Conditions générales

R&S®RTC1000 oscilloscope

Key facts

Bandwidth: 50 MHz to 300 MHz
Max. sample rate: 2 Gsample/s
Max. memory depth: 2 Msample
MSO: 8 digital channels, optional, retrofittable
Pattern generator: 4-bit patterns up to 50 Mbit/s

Great value

High sensitivity, multifunctionality and a great price – that is what makes the R&S®RTC1000 oscilloscope so special. From embedded developers to service technicians to educators – the wide range of functions address a broad group of users. State-of-the-art, high-performance technology in a fanless design meets the high requirements of today's customers.

Specifications

Vertical system
Number of channels		2
Bandwidth (–3 dB)	R&S^®RTC1002 (with bandwidth upgrade options)	50 MHz, 70 MHz, 100 MHz, 200 MHz, 300 MHz
Rise time (calculated)	R&S^®RTC1002 (with bandwidth upgrade options)	7 ns, 5 ns, 3.5 ns, 1.75 ns, 1.15 ns
Input impedance		1 MΩ ± 2% \|\| 14 pF ± 2 pF
Input sensitivity	max. bandwidth in all ranges	1 mV/div to 10 V/div
DC gain accuracy	offset and position = 0, maximum operating temperature change of ±5°C after self-alignment
	input sensitivity all ranges	3%
Acquisition system
Maximum realtime sampling rate		1 Gsample/s; 2 Gsample interleaved
Acquisition memory		1 Msample; 2 Msample interleaved
Horizontal system
Timebase range		1 ns/div to 100 s/div
Trigger system
Trigger types	standard	edge, width, video (PAL, SECAM, PAL-M, SDTV, HDTV) pattern, timeout
	option	I²C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN
Analysis and measurement functions
QuickView	at the push of a button, internal measurement values are written directly onto the waveform and updated continuously	peak-to-peak voltage, pos./neg. peak, rise/fall time, mean value, RMS value, time, frequency
Automated measurements		burst width, count positive/negative pulses, count falling/ rising edges, mean value, RMS cycle, RMS, mean cycle, peak±, frequency, period, amplitude, base level, pos./neg. overshoot, pulse width, duty cycle±, rise/time, delay, phase
Waveform mathematics		addition, subtraction, multiplication, division, FFT
MSO option
Digital channels		8 (1 logic probe)
Sampling rate		1 Gsample/s
Acquisition memory		1 Msample
Waveform generator option
Resolution, sampling rate		8-bit, 978 ksample/s
Amplitude	high Z; 50 Ω	60 mV to 6 V (V_pp); 30 mV to 3 V (V_pp)
DC offset	sine	0.1 Hz to 50 kHz
	pulse/rectangle and ramp/triangle	0.1 Hz to 10 kHz
4-bit pattern generator option
Programmable pattern	sample time	20 ns to 42 s, up/down
	memory depth	2048 sample
4-bit counter	frequency	100 mHz to 50 MHz
Square wave	frequency	1 mHz to 500 kHz
Digital voltmeter
Measurements	DC, AC + DC RMS, AC RMS resolution	up to 3 digits
Frequency counter
Resolution		6 digits
General data
Screen		6.5" VGA color display (640 × 480 pixel)
Interfaces		1 x USB host, USB device, LAN
Audible noise	max sound pressure level at 0.3 m	30.4 dB(A)
Dimensions	W × H × D	285 mm × 175 mm × 140 mm (11.22 in × 6.89 in × 5.51 in)
Weight		1.7 kg (3.75 lb)
