PCB 100-3

Kern PCB 100-3

Brand Logo

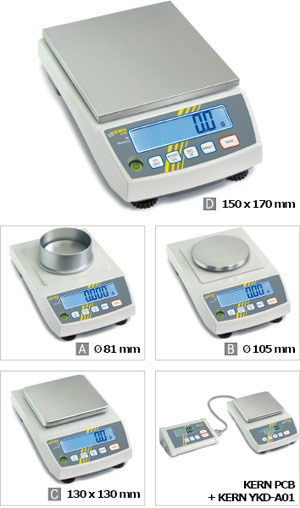

Balance de précision compacte 100g; 0.003g; plateau diam. 81mm
https://www.testoon.com/web/image/product.template/33067/image_1920?unique=25c08d3
Balance de précision
Poids maximum: 100g;
Résolution: 0.001g;
Précision: 0.003g;
Fonction PRE-TARE, comptage de pièces;
Ecran LCD retroéclairé, hauteur de chiffre 15 mm;
Chambre de protection ronde
Dimension plateau:diam. 81mm

345,00 € 345.0 EUR 345,00 € Hors taxes

345,00 € Hors taxes

Guide

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales

Partager

PCB Precision balance 100-3


Description:
  • PRE-TARE function for manual subtraction of a known container weight
  • piece counting function. reference quantities selectable.
  • Data transfer. for example to a printer or PC
  • Battery operation possible. Block battery (9V) not included. AUTO-OFF function after 3 min without a change of load to preserve the batteries
  • Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers KERN 911-013 and KERN YKB-01N

Further technical data
Measuring range Max 100 g
Readout d 0.001 g
Reproducibility 0.001 g
Linearity 0.003 g
Stabilisation time s 3 s
Temperatur sensitivity C 66*10^-6

Technical data about verification
Verification by KERN possible 0

Parts counting
Min. piece weight at counting 2 mg
Reference numbers of parts for parts count 5. 10. 20. 25. 50

Conditions of environment
Permissible ambient temperature 5C - 35C
Permissible ambient humidity 80%

Balance features
Protective working cover -1
Akku Optional. PCB-A01. working period: 24 h. working period: 48 h. charging time: 8 h
Battery operation 9 V Block. working period: 12 h
Auto Off Function 3 min. off
Available current supply EURO. UK. US
Display type LCD
Display digit height 15 mm
Weighing units g. gn. dwt. tl (Tw). tl (HK). ozt. ct. mo. oz. tol
Freely programmable weighing units 0
Internal adjusting weight 0
Recommended adjusting weight 100 g (F1)
Stand by Function 0

Volume / materials / weights
Volume casing wxdxh mm 163x245x79 mm (163x245x122 incl. wind shield)
Casing material plastic
Draught guard wxdxh Diameter inside: ø90 x 40. outside: ø106 x 42
Draught guard material plastic
Volume packing wxdxh [mm] 238x357x180
Gross weight kg 1.8000
Net weight kg 1.1000
Dimensions Weighing plate (Ø/WxD) 8.1 cm
