SM-10

Beha-Amprobe SM-10

Brand Logo
Sonomètre numérique 30-130 dB, 31.5Hz-8kHz
https://www.testoon.com/web/image/product.template/33612/image_1920?unique=20cc611
Sonomètre numérique, conforme IEC651 type 2.
Courbes de pondération: A et C.
Gamme de mesures: 30-130 dB (pondération A); 35-130 dB (pondération C).
Fréquences: 31.5 Hz - 8 kHz.
2 modes d'intégrations: lent et rapide.
Microphone à condenseur 1/2".
Enregistrement Min/Max.
Résolution: 0.1 dB.
Précision: +-1.5 dB.
Filetage pour trépied.
Calibration semi-automatique via un calibrateur 94dB/1kHz.

270,00 € 270.0 EUR 270,00 € Hors taxes

270,00 € Hors taxes

Guide

Cette combinaison n'existe pas.

Contactez-nous

Conditions générales

Partager

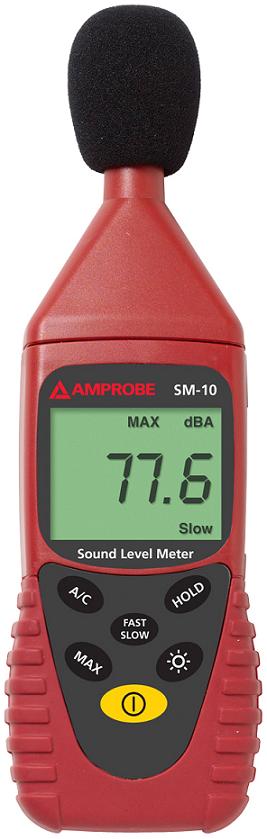

Amprobe  SM-10


The Amprobe SM-10 Sound Level Meter is designed to meet the measurement requirements of Safety Engineers. Health. Industrial safety offices and Quality Control in various environments. It offers two types of measurements: A and C weighting.

The A weighting is for general noise sound level and the C weighting is for measuring sound level of acoustic material control in various environments (ie 94dB 1 kHz etc...). The SM-10 conforms to the IEC651 Type 2. ANSI S1.4 Type 2. and JISC1502 requirements for Sound Level Meters. Which means the SM-10 uses two different weighting filters required by the IEC 651 and ANSI S1.4 Type 2: the A-Weighting and the C-Weighting audio filtering.

  • Designed to meet the measurement requirements of Safety Engineers. Health. Industrial safety offices and quality control in various environments.
  • A and C weightings for checking compliance with safety regulations as well as acoustic analysis
  • Measuring ranges: A Weighting 30 ~130dB C Weighting 35~130dB
  • Frequency range: 31.5Hz~8KHz
  • Display with 0.1dB steps on a 4 digits LCD
  • Slow (1 sec) and fast (125ms) response settings to check peak and average noise levels
  • MAX/MIN recording
  • Data Hold to freeze reading on digital display
  • Accessories supplied: Carrying case. windscreen. user manual and 9V Battery
  • CE. designed to meet IEC651 Type2. ANSI S1.4 Type2

 F E A T U R E S

Battery Life:     Approx. 50 hrs (alkaline Battery)
Size:     200 x 55 x 38 mm (7.8 x 2.2 x 1.5 in)
Weight:     233g. (0.5 lb.) Including battery
Safety:     CE-EMC


S P E C I F I C A T I O N S

Display:    4 digits LCD
Microphone:    1/2 inch Electret condenser microphone
Power Supply:    9V NEDA 1604. IEC 6F22. JIS 006P battery
Auto Power Off:    Approx. 5 min
Environment:    Indoor operation. < 2000 m
Standard applied:    IEC 651 Type2. ANSI 1.4 Type 2
Dynamic range:    50 dB
Resolution:    0.1 dB. Display Update: 0.5 sec.
Time weighting:    FAST(125mS). SLOW(1 sec)
Frequency range:    31.5 Hz to 8 kHz
