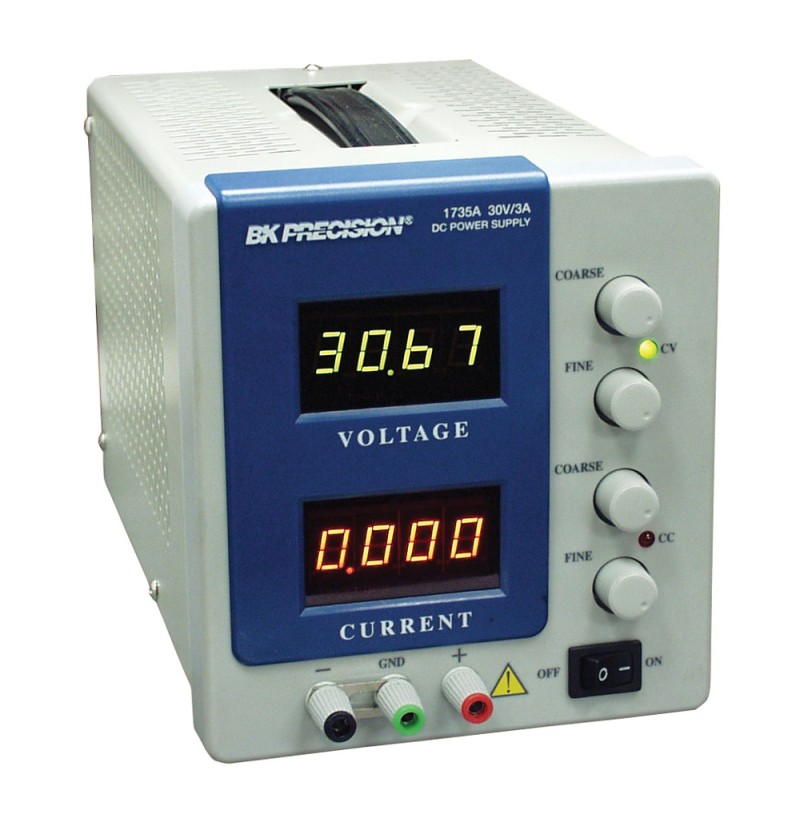

BK Precision BK1735A

Alimentation simple linéaire de puissance précise, 90W
0-30V
0-3A
Affichage tension et courant sur 4 chiffres
Réglage fin de la tension et du courant

Cette combinaison n'existe pas.

BK1735A

Alimentation de laboratoire de grande précision

Performances

BK1735A

• 0-30V

• 3 A

• faible bruit

• affichage courant et tension par LED (4 digits)

• réglage grossier et fin pour la tension et le courant

• fonctionnement indépendant ou asservi parallèle

• bornes de sécurité 4mm et bornier

Specifications	model 1735A
Output Voltage	0-30V
Output Current	0-3A
Constant Voltage Operation Voltage Regulation Line (120VAC + 10%. -6%) Load (no load - full load) Recovery Time Ripple & Noise Temperature Coefficient	<=0.02% + 3mV <=0.02% + 3mV <=500ms <=0.5mVrms <=300ppm/⁰C
Constant Current Operation Adjustable Current Range Current Regulation Line (120VAC + 10%. -6%) Load Current Ripple	0 - 100% <=0.02% + 3mA <=0.02% + 3mA <=3mA
Metering Type Voltmeter Range Voltmeter Accuracy Ammeter Range Ammeter Accuracy	4 -digit LED 0 - 60V +-0.2% + 2 digits 0-9.99 A +-0.2% + 2 digits
Overload Protection	Current. limiting. reverse polarity. overvoltage. short circuit
Power Requirements	120 VAC +- 10%. 60Hz (120/220/230/24CVAC +- 10%. 50/60Hz version available)
Power Consumption	220W
Operating Temperature	32 ⁰ to 104 ⁰F (0 ⁰ to 40 ⁰ to 40 ⁰C). <=75% R. H.
Storage Temperature	5 ⁰ to 158 ⁰F (-5 ⁰ to +70 ⁰ to 40 ⁰C). <=85% R. H.
Dimensions (HxWxD)	8.07 x 4.53 x 10.63'' (205 x 115 x 270 mm)
Weight	16.3 lbs. (7.4 kg)
One Year Warranty
Accessories
OPTIONAL: Hook-up leads up to 5 amps Model TL-5A up to 30 amps Model TL-30
